SMD Components
Shaping the Future

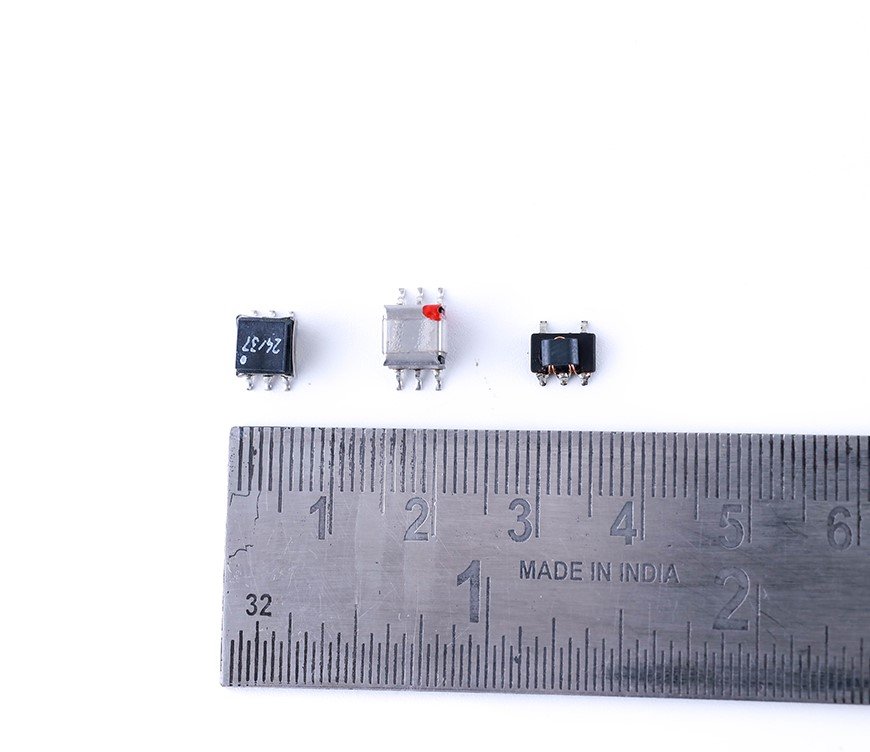

High-Quality SMD Components
GT Electronic India utilizes advanced Surface-Mount Technology (SMT) to produce high-performance components designed for direct mounting onto the surface of Printed Circuit Boards (PCBs). To support automated assembly lines and protect component integrity, we also offer professional blister packaging facilities for all our SMD products.
The Advantages of SMT
Switching from traditional through-hole techniques to our SMD solutions offers significant technical and economic benefits:
- Superior Connection Density: By eliminating the need for through-holes, routing space on the inner and back-side layers of the PCB remains unblocked, allowing for more complex and compact circuit designs.
- Reduced Manufacturing Costs: With fewer holes to drill and a streamlined assembly process, SMD components lead to lower initial costs and faster production starts.
- Enhanced Electrical Performance: SMD components provide significantly better Electromagnetic Compatibility (EMC) performance, reducing interference in sensitive electronic applications.
- Production Efficiency: Our SMD solutions are optimized for high-speed automated placement, ensuring precision and reliability at scale.

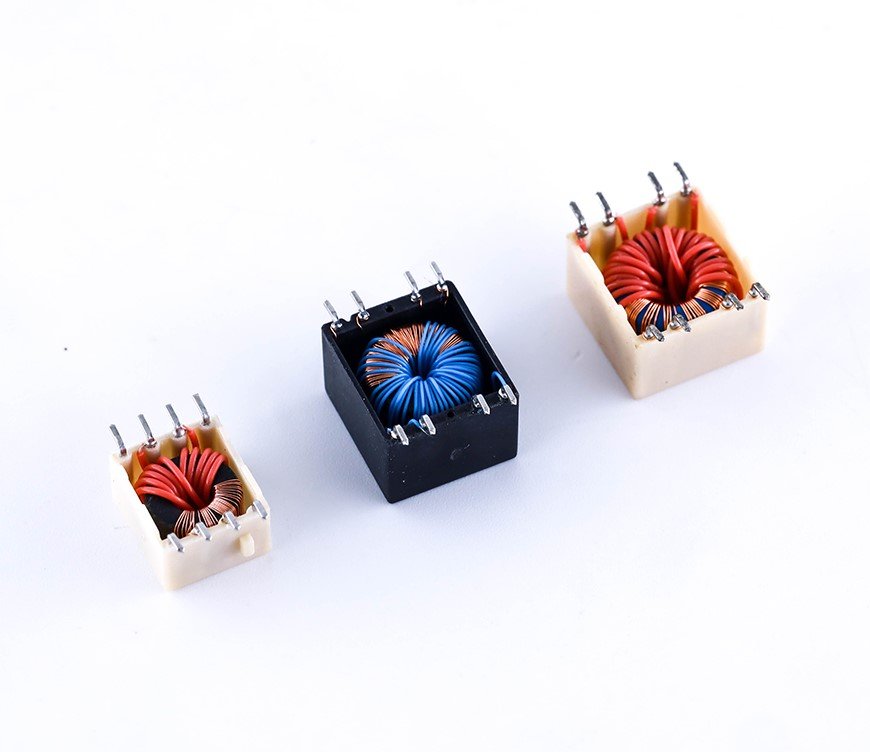

- Toroidal or EI
- Iron powder and Si-Fe ferrites
- Mounting can be horizontal or vertical
- Manufacturing with mounting/base plate or encapsulated with potting/vacuum potting
- Manufacturing in customized terminals like SMD PIN, through hole PIN or flying leads with crimp/connectors
- Construction according to EN 61558-1, UL insulation system for class F (GT owned), RoHS and REACH conformity
Shaping the Future
Inductor and chokes
GT Electronic India is a well experienced manufacturer of customized toroidal chokes, high current chokes, output chokes, EMI filters, power inductors and power supply filtering chokes for various applications.
Industry Solutions
Common Mode Choke
The CMC chokes (two /more coils are wound on a single core) are used for prevention of electromagnetic interference (EMI) and radio frequency interference (RFI) from power supply lines and for prevention of malfunctioning of electronic equipment. Enquiry
Common Mode Choke
The CMC chokes (two /more coils are wound on a single core) are used for prevention of electromagnetic interference (EMI) and radio frequency interference (RFI) from power supply lines and for prevention of malfunctioning of electronic equipment. Enquiry
Common Mode Choke
The CMC chokes (two /more coils are wound on a single core) are used for prevention of electromagnetic interference (EMI) and radio frequency interference (RFI) from power supply lines and for prevention of malfunctioning of electronic equipment. Enquiry
Common Mode Choke
The CMC chokes (two /more coils are wound on a single core) are used for prevention of electromagnetic interference (EMI) and radio frequency interference (RFI) from power supply lines and for prevention of malfunctioning of electronic equipment. Enquiry
Common Mode Choke
The CMC chokes (two /more coils are wound on a single core) are used for prevention of electromagnetic interference (EMI) and radio frequency interference (RFI) from power supply lines and for prevention of malfunctioning of electronic equipment. Enquiry
Common Mode Choke
The CMC chokes (two /more coils are wound on a single core) are used for prevention of electromagnetic interference (EMI) and radio frequency interference (RFI) from power supply lines and for prevention of malfunctioning of electronic equipment. Enquiry
Industry Solutions
SMPS Transformer
GT Electronic India offers a wide range of customized SMPS transformers. These transformers are used extensively in electronic applications, usually within a switch mode power supply.
Fly Back Transformer
Fly Back transformers (also called Line Output Transformers or LOPT) are designed to generate high voltage saw tooth signals with relatively high frequency. They are used in SMPS.
Push-Pull Transformer
Push-Pull transformers (also called Buck-Boost transformer) are widely used in converting direct current (DC) voltage into another value of DC voltage. Push-Pull transformers are usually the preferred choice in high power switching transformer applications up to one kilowatt.
Forward Transformer
Forward transformers are also popular switched mode power supply (SMPS) circuits, used for producing isolated and controlled DC voltage from unregulated DC input supply. Forward transformers are used in ranges from 100W to 500W, whereas Flyback transmitters are particularly suited for low power applications.
Special Customized Transformer
GT Electronic India is your professional partner for all special applications and customized transformers.
Common Mode Choke
The CMC chokes (two /more coils are wound on a single core) are used for prevention of electromagnetic interference (EMI) and radio frequency interference (RFI) from power supply lines and for prevention of malfunctioning of electronic equipment. Enquiry
Current Compensated Suppression Choke
These chokes are based on high-permeability toroid core (ferrite) with two symmetrical windings, so the magnetic fields are cancelling each other. They are mainly used in devices with switched-mode power supplies.
Rod Core / Drum Core Inductor
For rod core/drum core inductors, the wire is wound directly on the core. The core shape is typically cylindrical or cylindrical with end caps.
Power Factor Correction Chokes (PFC)
GT Electronic India optimizes a Power Factor Correction (PFC) solution for any specific application. PFC chokes are made of core with one main winding and an auxiliary winding, if needed. PFC chokes are used to reduce significantly harmonic distortions – generally in line with the main supply in SMPS components.
Storage Chokes
Storage chokes are used for energy storage in SMPS components. They are usually made of iron or metal powder cores with one winding. When the inductance decreases with increasing load current, the load current is typically selected at 60% to 75% of the non-load inductance.
Common Mode Choke
The CMC chokes (two /more coils are wound on a single core) are used for prevention of electromagnetic interference (EMI) and radio frequency interference (RFI) from power supply lines and for prevention of malfunctioning of electronic equipment. Enquiry
Current Compensated Suppression Choke
These chokes are based on high-permeability toroid core (ferrite) with two symmetrical windings, so the magnetic fields are cancelling each other. They are mainly used in devices with switched-mode power supplies.
Rod Core / Drum Core Inductor
For rod core/drum core inductors, the wire is wound directly on the core. The core shape is typically cylindrical or cylindrical with end caps.
Power Factor Correction Chokes (PFC)
GT Electronic India optimizes a Power Factor Correction (PFC) solution for any specific application. PFC chokes are made of core with one main winding and an auxiliary winding, if needed. PFC chokes are used to reduce significantly harmonic distortions – generally in line with the main supply in SMPS components.
Storage Chokes
Storage chokes are used for energy storage in SMPS components. They are usually made of iron or metal powder cores with one winding. When the inductance decreases with increasing load current, the load current is typically selected at 60% to 75% of the non-load inductance.
SMD Transformers
SMD Chokes
SMD Inductors
Blister packing facility for SMD Components
products
Product Approvals
Common Mode Choke
The CMC chokes (two /more coils are wound on a single core) are used for prevention of electromagnetic interference (EMI) and radio frequency interference (RFI) from power supply lines and for prevention of malfunctioning of electronic equipment.
Enquiry
Current Compensated Suppression Choke
These chokes are based on high-permeability toroid core (ferrite) with two symmetrical windings, so the magnetic fields are cancelling each other. They are mainly used in devices with switched-mode power supplies
Current Compensated Suppression Choke
These chokes are based on high-permeability toroid core (ferrite) with two symmetrical windings, so the magnetic fields are cancelling each other. They are mainly used in devices with switched-mode power supplies
Frequently Asked Questions
Inductors and chokes are used for energy storage, noise suppression, EMI filtering, and power regulation in electronic circuits. They help ensure stable and interference-free performance in power supplies, converters, and signal applications.
Yes, all our inductors and chokes can be manufactured for horizontal or vertical mounting, depending on your PCB layout and mechanical requirements.
Yes, we specialize in fully customized inductors and chokes based on your electrical parameters, core material, mounting preferences, and size requirements.
Our inductors and chokes are manufactured according to:
- EN 61558-1
- UL insulation system (Class F – GT owned)
- RoHS
- REACH compliance
Yes. Our technical team helps in selecting the ideal core material, winding type, and specifications based on your application.
Frequently Asked Questions
Still have a Questions?
Can’t find your answer to your question? Send us an email and we’ll get back to you as soon as possible !
1. What are inductors and chokes used for?
Inductors and chokes are used for energy storage, noise suppression, EMI filtering, and power regulation in electronic circuits. They help ensure stable and interference-free performance in power supplies, converters, and signal applications.
2. Can the inductors be mounted horizontally or vertically?
Yes, all our inductors and chokes can be manufactured for horizontal or vertical mounting, depending on your PCB layout and mechanical requirements.
3. Do you provide custom-designed inductors or only standard models?
Yes, we specialize in fully customized inductors and chokes based on your electrical parameters, core material, mounting preferences, and size requirements.
Frequently Asked Questions
1. What are SMD Components?
SMD (Surface Mount Device) components are electronic parts designed to be mounted directly onto the surface of printed circuit boards (PCBs) without the need for through-hole mounting.
2. Where are SMD components commonly used?
SMD components are widely used in consumer electronics, industrial equipment, communication devices, computers, and power supply systems.
3. What are the advantages of SMD components?
SMD components are compact, lightweight, and allow for high-density circuit design. They also support automated assembly, improving manufacturing efficiency.
4. WWhy are SMD components preferred in modern electronics?
They save space on circuit boards, improve electrical performance, and enable faster and more efficient manufacturing processes.
1. What are inductors and chokes used for?
Inductors and chokes are used for energy storage, noise suppression, EMI filtering, and power regulation in electronic circuits. They help ensure stable and interference-free performance in power supplies, converters, and signal applications.
2. Can the inductors be mounted horizontally or vertically?
Yes, all our inductors and chokes can be manufactured for horizontal or vertical mounting, depending on your PCB layout and mechanical requirements.
3. Do you provide custom-designed inductors or only standard models?
Yes, we specialize in fully customized inductors and chokes based on your electrical parameters, core material, mounting preferences, and size requirements.
4. Do you offer support for selecting the right inductor or choke?
Yes. Our technical team helps in selecting the ideal core material, winding type, and specifications based on your application for optimal performance and reliability.
